软件供应链健康度评估之scorecard

Scorecard介绍

Scorecard是一个自动化工具，评估开源项目的健康度。Scorecard通过评估与开源项目安全性相关的一系列指标项，每项10分。可以使用这些评分来了解需要改进的具体领域，以增强项目的安全性。同时，还可以评估依赖项带来的安全风险，如接受这些风险、评估替代方案或与维护者合作进行改进。

注意：由于scorecard项目不断迭代更新，检测规则也在变化，本文有效时间为：2024年08月06日前后

支持Scorecard项目

Scorecard已在数千个项目上运行，以监控和跟踪安全指标。主要使用Scorecard的项目包括：

Tensorflow
Angular
Flutter
sos.dev
deps.dev

deps fastjson results

查看项目的评分

要查看Scorecard定期扫描的项目评分，请访问webviewer，并替换占位符文本为平台、用户/组织和存储库名称：https://scorecard.dev/viewer/?uri=<github_or_gitlab>.com/<user_name_or_org>/<repository_name>

例如：

https://scorecard.dev/viewer/?uri=github.com/alibaba/fastjson

fastjson score

公开数据

每周对被认为是最关键的100万个开源项目进行Scorecard扫描，并将结果发布在BigQuery公开数据集中。最新的结果可在BigQuery视图openssf:scorecardcron.scorecard-v2_latest中查看。

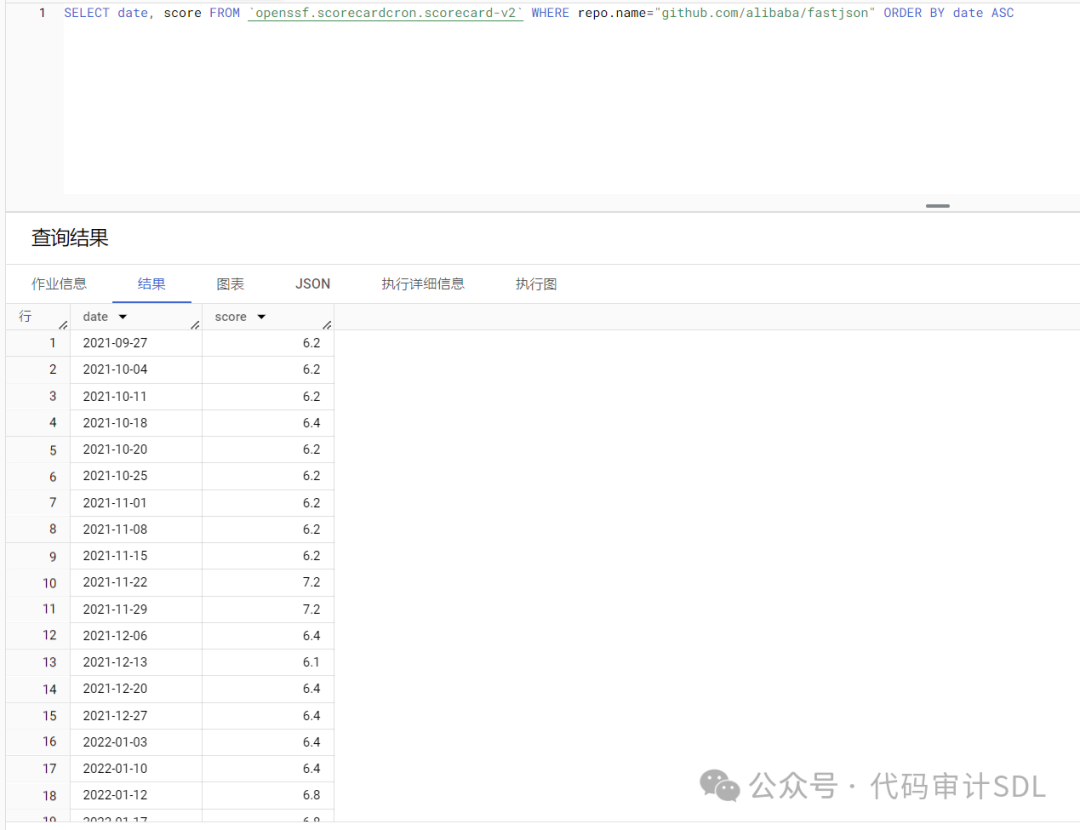

可以使用BigQuery Explorer查询数据，导航至Add Data > Star a project by name > 'openssf'。例如，可能会对项目评分随时间的变化感兴趣：

bigquery data query

SELECT date, score FROM `openssf.scorecardcron.scorecard-v2` WHERE repo.name="github.com/alibaba/fastjson" ORDER BY date ASC

bigquery data query demo

还可以使用bq工具将最新结果提取到Google Cloud Storage中：

# 获取最新的PARTITION_ID
bq query --nouse_legacy_sql 'SELECT partition_id FROM openssf.scorecardcron.INFORMATION_SCHEMA.PARTITIONS WHERE table_name="scorecard-v2" AND partition_id!="__NULL__" ORDER BY partition_id DESC LIMIT 1'
# 提取到GCS
bq extract --destination_format=NEWLINE_DELIMITED_JSON 'openssf:scorecardcron.scorecard-v2$<partition_id>' gs://bucket-name/filename-*.json

Scorecard 使用

Scorecard GitHub Action

使用Scorecard GitHub Action是最简单的方法，在拥有的GitHub项目上运行Scorecard。该Action在任何存储库更改时运行，并在维护者可以在存储库的安全标签中查看警报。有关更多信息，请参阅Scorecard GitHub Action安装说明。

Scorecard命令行

要在不拥有的项目上运行Scorecard扫描，请使用命令行界面安装选项。

安装

Docker

scorecard可以作为Docker容器使用：

docker pull gcr.io/openssf/scorecard:stable

要使用特定的scorecard版本（例如v3.2.1），请运行：

docker pull gcr.io/openssf/scorecard:v3.2.1

本地安装

自行编译，或者直接从release下载对应的二进制文件即可

make build

使用包管理器

包管理器

支持的分发版

命令

Nix

NixOS

nix-shell -p nixpkgs.scorecard

AUR

Arch Linux

yaourt install scorecard

Homebrew

macOS或Linux

brew install scorecard

获取github 授权 token

GitHub对未经认证的请求实施api速率限制。为了避免这些限制，必须在运行Scorecard之前对的请求进行认证。有两种方法可以认证的请求：创建GitHub个人访问令牌或创建GitHub App安装。

创建经典的GitHub个人访问令牌。创建个人访问令牌时，建议选择public_repo范围。

export GITHUB_AUTH_TOKEN=<your access token>

运行

若要在特定存储库上运行scorecard：

scorecard --repo=<repo_url>

例如：

scorecard --repo=https://github.com/alibaba/fastjson

结果如下：

Starting [Token-Permissions]
Starting [Signed-Releases]
Starting [Packaging]
Starting [Dangerous-Workflow]
Starting [Contributors]
Starting [Security-Policy]
Starting [CI-Tests]
Starting [SAST]
Starting [License]
Starting [Binary-Artifacts]
Starting [CII-Best-Practices]
Starting [Pinned-Dependencies]
Starting [Code-Review]
Starting [Fuzzing]
Starting [Branch-Protection]
Starting [Vulnerabilities]
Starting [Dependency-Update-Tool]
Starting [Maintained]
Finished [Binary-Artifacts]
Finished [CII-Best-Practices]
Finished [Pinned-Dependencies]
Finished [Vulnerabilities]
Finished [Dependency-Update-Tool]
Finished [Maintained]
Finished [Code-Review]
Finished [Fuzzing]
Finished [Branch-Protection]
Finished [Token-Permissions]
Finished [Signed-Releases]
Finished [Packaging]
Finished [CI-Tests]
Finished [SAST]
Finished [License]
Finished [Dangerous-Workflow]
Finished [Contributors]
Finished [Security-Policy]
RESULTS
-------
Aggregate score: 3.9 / 10
Check scores:
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
|  SCORE  |          NAME          |             REASON             |                                               DOCUMENTATION/REMEDIATION                                               |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 10 / 10 | Binary-Artifacts       | no binaries found in the repo  | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#binary-artifacts       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | Branch-Protection      | branch protection not enabled  | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#branch-protection      |
|         |                        | on development/release         |                                                                                                                       |
|         |                        | branches                       |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | CI-Tests               | 0 out of 4 merged PRs          | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#ci-tests               |
|         |                        | checked by a CI test -- score  |                                                                                                                       |
|         |                        | normalized to 0                |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | CII-Best-Practices     | no effort to earn an OpenSSF   | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#cii-best-practices     |
|         |                        | best practices badge detected  |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 1 / 10  | Code-Review            | Found 3/28 approved changesets | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#code-review            |
|         |                        | -- score normalized to 1       |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 10 / 10 | Contributors           | project has 18 contributing    | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#contributors           |
|         |                        | companies or organizations     |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 10 / 10 | Dangerous-Workflow     | no dangerous workflow patterns | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#dangerous-workflow     |
|         |                        | detected                       |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 10 / 10 | Dependency-Update-Tool | update tool detected           | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#dependency-update-tool |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | Fuzzing                | project is not fuzzed          | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#fuzzing                |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 10 / 10 | License                | license file detected          | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#license                |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | Maintained             | 0 commit(s) and 0 issue        | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#maintained             |
|         |                        | activity found in the last 90  |                                                                                                                       |
|         |                        | days -- score normalized to 0  |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| ?       | Packaging              | packaging workflow not         | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#packaging              |
|         |                        | detected                       |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | Pinned-Dependencies    | dependency not pinned by hash  | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#pinned-dependencies    |
|         |                        | detected -- score normalized   |                                                                                                                       |
|         |                        | to 0                           |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | SAST                   | SAST tool is not run on all    | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#sast                   |
|         |                        | commits -- score normalized to |                                                                                                                       |
|         |                        | 0                              |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 10 / 10 | Security-Policy        | security policy file detected  | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#security-policy        |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| ?       | Signed-Releases        | no releases found              | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#signed-releases        |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | Token-Permissions      | detected GitHub workflow       | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#token-permissions      |
|         |                        | tokens with excessive          |                                                                                                                       |
|         |                        | permissions                    |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|
| 0 / 10  | Vulnerabilities        | 22 existing vulnerabilities    | https://github.com/ossf/scorecard/blob/a8eae2d833553e93021a22f5641661cb6ad3e24c/docs/checks.md#vulnerabilities        |
|         |                        | detected                       |                                                                                                                       |
|---------|------------------------|--------------------------------|-----------------------------------------------------------------------------------------------------------------------|

在默认情况下，Scorecard会对所有检查运行。要运行特定检查，请使用：

scorecard --repo=<repo_url> --checks <check1,check2>

例如：

scorecard --repo=https://github.com/ossf/scorecard --checks Code-Review,Maintained

使用SARIF文件导出到GitHub Security 可以将Scorecard检查结果导出到GitHub Security工具（由GitHub Actions自动生成）。为此，使用--format参数生成一个SARIF文件并上传：

scorecard --repo=<repo_url> --format sarif > results.sarif
gh upload results.sarif

使用原始数据导出默认情况下，scorecard导出json格式的结果。可以使用以下参数导出结果：

scorecard --repo=<repo_url> --format json --show-details > results.json

检查项介绍

检查项详细来源：https://github.com/ossf/scorecard/blob/main/docs/checks.md

名称

描述

Binary-Artifacts(二进制组件)

检查项目中是否包含二进制文件

Branch-Protection(分支保护)

github 是否启用分支保护

CI-Tests(CI测试)

在合并分支请求之前是否配置CI测试

CII-Best-Practices(CII最佳实践)

是否遵循CII最佳实践

Code-Review(代码审计)

检测项目在合并代码之前是否进行代码审计

Contributors(贡献者)

检查项目是否有多个贡献者

Dangerous-Workflow(不安全的工作流)

检查github action配置是否不安全

Dependency-Update-Tool(依赖更新工具)

检查项目是否使用依赖更新工具

Fuzzing(模糊测试)

检查项目是否进行模糊测试

License(许可协议)

检查项目是否声明了许可协议

Maintained(维护)

检查项目是否积极维护

Packaging(打包)

检查项目是否使用组件包的形式进行发布

Pinned-Dependencies(依赖标识)

检查项目是否使用包管理器声明依赖信息

SAST(静态代码扫描)

检查项目是否进行静态代码扫描

Security-Policy(安全策略)

检查项目是否声明安全策略

Signed-Releases(签名发行)

检查项目是否对发布的组件进行签名

Token-Permissions(令牌权限)

检查workflow token是否遵顼最小权限原则

Vulnerabilities(漏洞)

使用osv等开源漏洞库检测代码和组件是否包含漏洞

总结

企业实践

1、使用 Scorecard 对第三方开源项目进行安全性评估，综合判断引入的第三方组件的健壮性。

2、对企业开源的项目进行评估，提高被维护项目的安全性。

开发者

1、对自己开发的项目进行评估，综合提高项目安全性。

2、评估引入的第三方组件，提高项目整理健壮性
